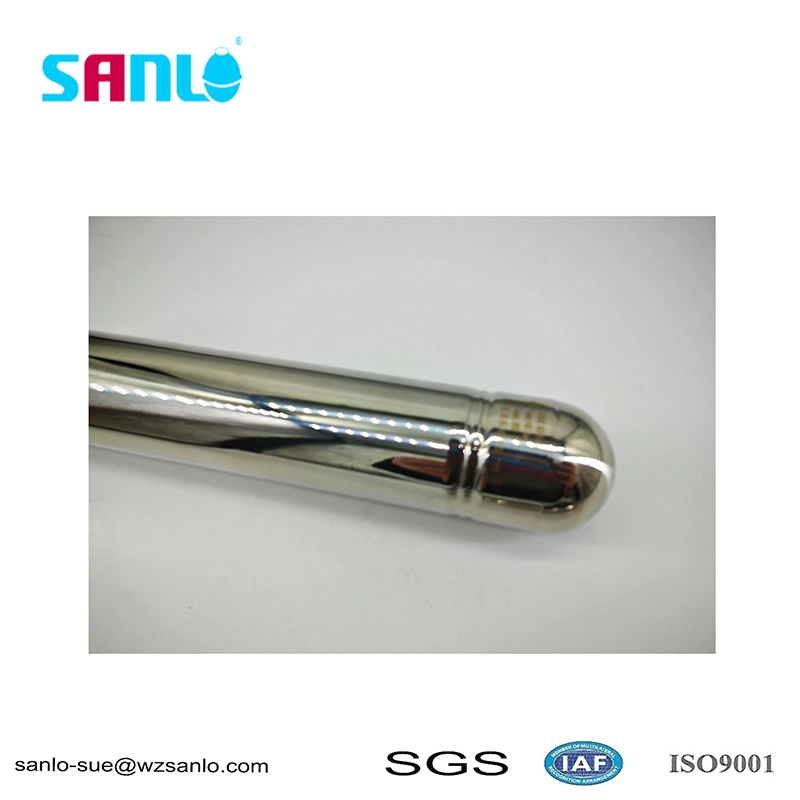

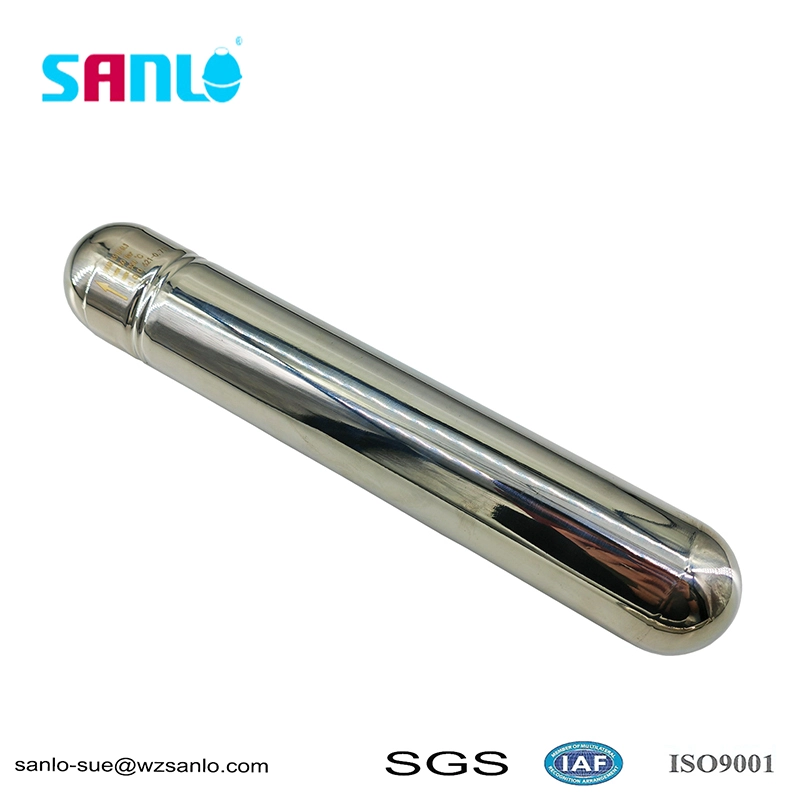

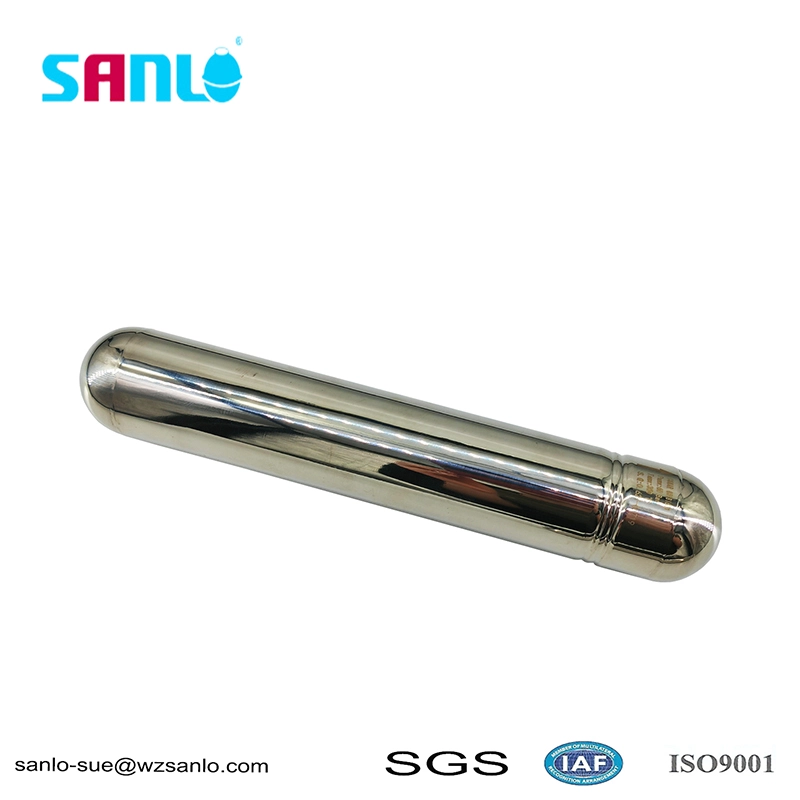

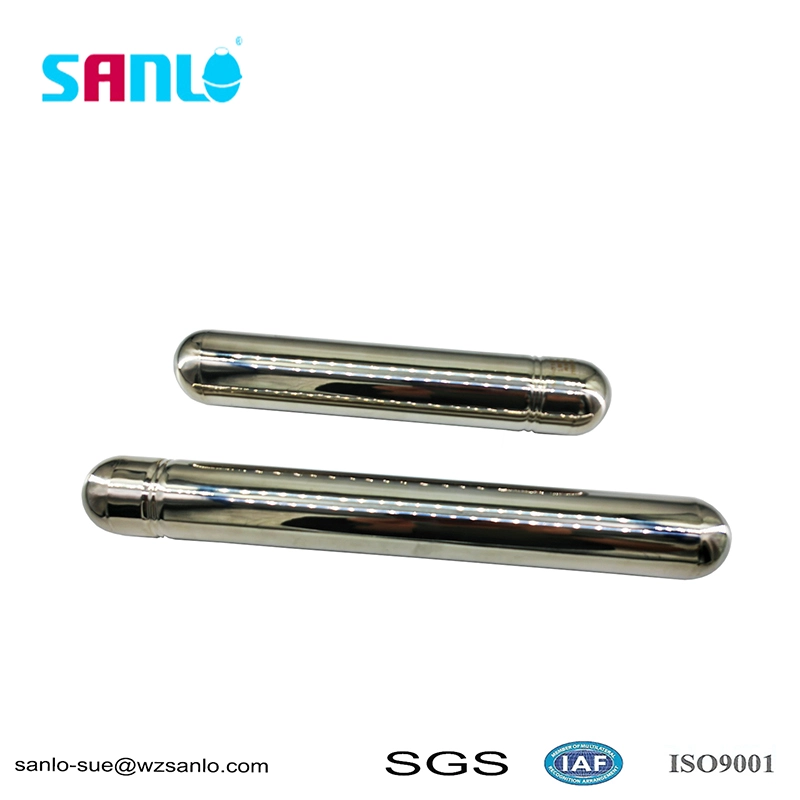

The 50*290 level gauge magnetic flap float ball is a slender cylindrical structure as a whole, with hemispherical heads welded and sealed at both ends. The weld seam is finely polished and polished, with a smooth and smooth surface that is not easy to hang or scale. The standard size has an outer diameter of 50mm and a total length of 290mm. There is reserved space inside the cavity for packaging permanent magnet steel, which is completely sealed without pores to prevent medium from penetrating into the interior. The smooth outer wall has low resistance during the liquid lifting process, runs smoothly, and will not deviate or jam due to the turbulent flow of the tank liquid, ensuring stable and reliable liquid level indication.
The main body is made of high-quality 316L stainless steel raw material, with a density that meets the buoyancy requirements of liquids. It is resistant to acid and alkali, corrosion, and water vapor oxidation, and can be used for a long time in water, oil, and weakly corrosive chemical media. Compared with ordinary carbon steel floating balls, its service life is greatly extended.
1. Strong sealing: The two end heads are fully welded and undergo high-pressure air tightness testing before leaving the factory to prevent water ingress, deformation, and failure;
2. Accurate buoyancy: With a fixed volume of 50 × 290 and self weight, the buoyancy parameters have been standardized and verified, and can quickly respond to even small changes in the liquid level;
3. Stable magnetic conductivity: Internally sealed high-strength permanent magnets penetrate the cylinder wall with magnetic force, stably driving the external magnetic flip to flip, achieving non-contact on-site liquid level display without mechanical wear, inherently safe and explosion-proof, suitable for storage tanks with flammable and explosive media.
The floating ball relies on its overall density being lower than the measured liquid, and synchronously floats up and down with the height of the liquid level inside the storage tank. The built-in permanent magnet source moves with the float displacement, utilizing the magnetic coupling effect to drive the dual color magnetic flip panel on the outer side of the liquid level gauge to flip line by line. The blank and colored flip panels form a clear boundary, and on-site personnel can intuitively see the current liquid level height without the need for external power supply. The structure is simple and easy to maintain.
The product follows the ISO9001 quality management system throughout the process, and each product has raw material certification and testing reports. Each float ball must go through three key processes: water pressure leak detection, buoyancy calibration, and magnetic strength sampling. The dimensional tolerance is strictly controllable, and the interchangeability is strong. It can directly replace the original float ball of imported or domestic magnetic flap level gauges of the same specification without changing the cylinder structure.
