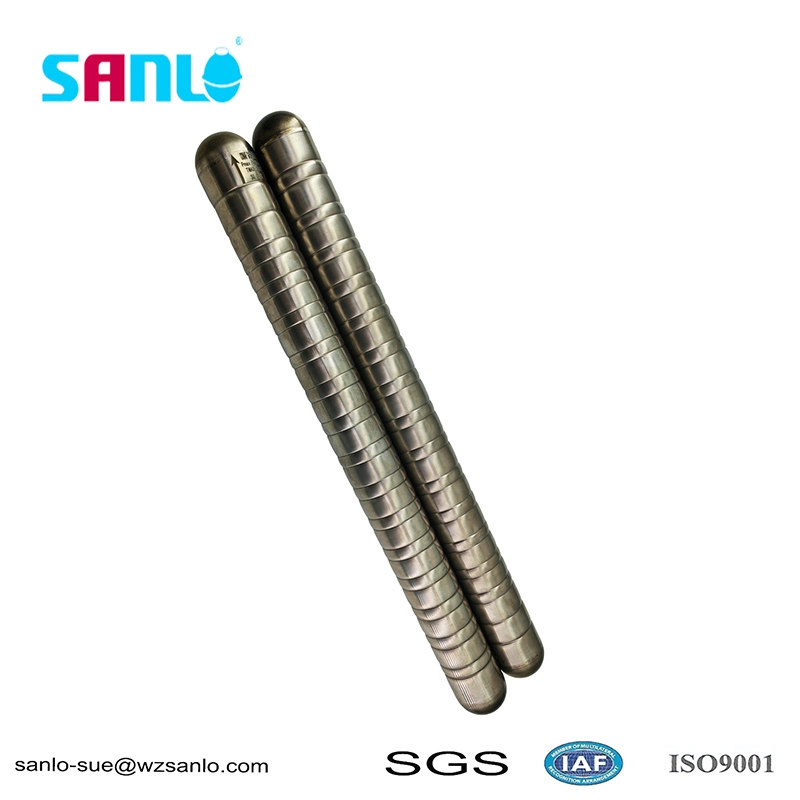

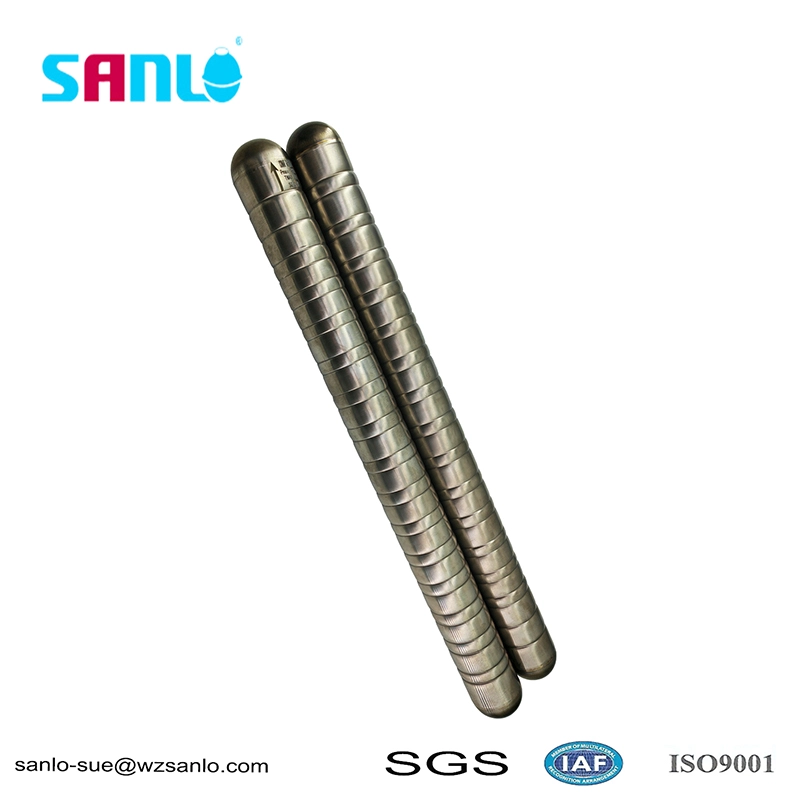

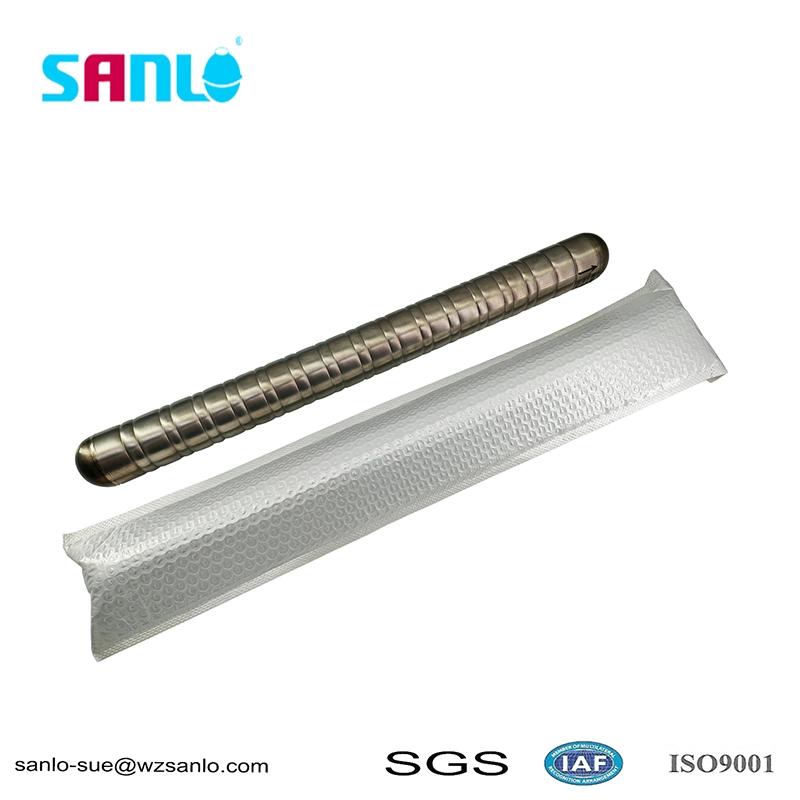

This 45*500 metal titanium magnetic floating ball is depend on customer request , The S.G is 0.38, pressure is 18MPA , Temp :350-400degree , it is very higher pressure float ball . with the lower S.G , only can production it by Ti.The main body of the floating ball is made of high-quality titanium alloy raw materials, which are integrally formed and have corrosion resistance far exceeding that of conventional stainless steel floating balls. Faced with highly corrosive media such as hydrochloric acid, seawater, brine, strong acidic and alkaline chemical solutions, and saline wastewater, titanium material has stable chemical properties and is not easily corroded or perforated by the media. It has a longer service life and is particularly suitable for harsh use scenarios such as chemical, petrochemical, sewage treatment, marine platforms, and fine pharmaceuticals. Compared to 304 and 316L stainless steel float balls, titanium alloy has a specific gravity that better meets the requirements of liquid level measurement. The buoyancy ratio is precise, and even small fluctuations in the liquid level can be sensitively captured. The liquid level feedback accuracy is higher.

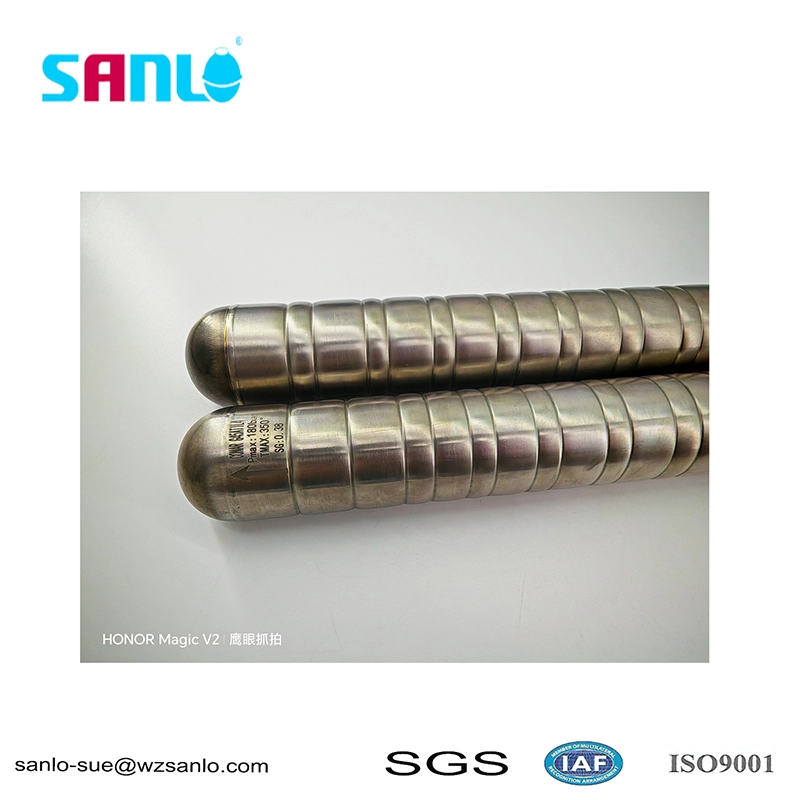

The interior of the floating ball is sealed with high-strength permanent magnet steel, and the whole is completely sealed without leakage. When working, the floating ball relies on its own buoyancy to synchronously float up and down with the liquid level inside the storage tank. The built-in magnetic source penetrates the pipe wall and drives the dual color magnetic flap outside the level gauge to flip. There is no electrical contact or mechanical transmission wear, and the real-time liquid level height can be displayed intuitively on site. The structure is safe and reliable, with excellent explosion-proof properties, suitable for use in flammable and explosive medium storage tanks. The outer wall ring groove structure can also reduce the drift interference caused by turbulent flow of the medium. Even in containers with fast liquid flow velocity, it can maintain vertical and stable operation, avoiding jamming and deviation that may cause distortion of liquid level display
| comparative dimension | Stainless steel (taking 316L as an example) | Metallic titanium (pure titanium/TC4 titanium alloy) | Monel 400 | Hastelloy C-276 |
| main ingredients | Cr16-18%、Ni10-14%、Mo2-3%,iron-based alloy | Ti≥99%(pure titanium);Ti-6Al- 4V(titanium alloy) | Ni63-70%、Cu28-34%,Nickel copper alloy | Ni50-60%、Cr14-18%、Mo15- 17%,Nickel molybdenum chromium alloy |
| Density(g/cm³) | 7.98 | 4.51(pure titanium) | 8 | 8.89 |
| corrosion resistance | Resistant to seawater and weak acid corrosion,with strong resistance to chloride stress corrosion | Resistant to strong acids (nitric acid,sulfuric acid),seawater,and body fluids,with stable oxide film | Corrosion resistance to hydrofluoric acid,sulfuric acid,seawater,brine, and stress corrosion | Resistant to strong oxidizing acids (nitric acid),reducing acids (hydrochloric acid),and chlorine gas |
| Maximum operating temperature | 870℃ | 600°C(titanium alloy) | 480℃ | 1090℃ |
| Strength (MPa) | Tensile strength≥485,yield strength≥170 | Pure titanium tensile strength≥ 240;TC4 tensile strength≥895 | Tensile strength≥485,yield strength ≥195 | Tensile strength≥690,yield strength≥283 |
| machinability | Good weldability,easy cutting,and can be stamped into shape | Good plasticity at room temperature,prone to oxidation at high temperatures,requiring protective welding | Can be forged,rolled,and welded with controlled heat input | Excellent welding performance, difficult cutting processing |
| Typical application scenarios | Medical devices,food equipment,marine engineering | Aerospace components,medical equipment,high-end insulated cups | Chemical storage tanks,seawater desalination equipment,hydrofluoric acid treatment equipment | Nuclear industry,high- temperature furnace components, and highly corrosive chemical equipment |
| Summary of advantages and disadvantages | High cost-effectiveness and wide application/Heavy weight,not resistant to strong alkali | Lightweight (high strength/density ratio),good biocompatibility Expensive and brittle at low temperatures | Resistant to hydrofluoric acid corrosion and good ductility Limited high-temperature performance and high cost | Extremely strong corrosion resistance and high temperature resistance Extremely high price and difficult processing |
