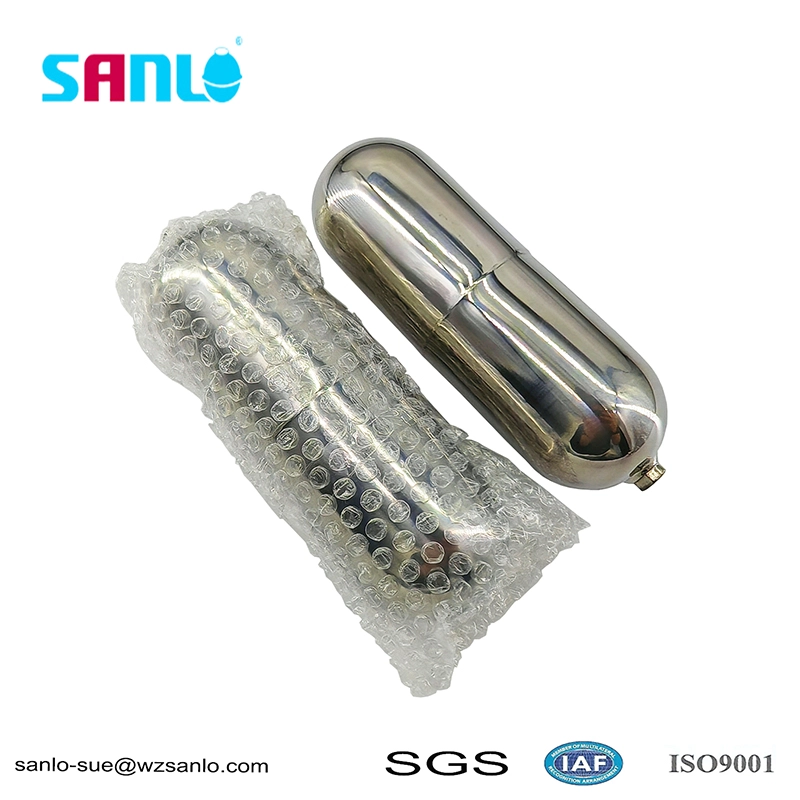

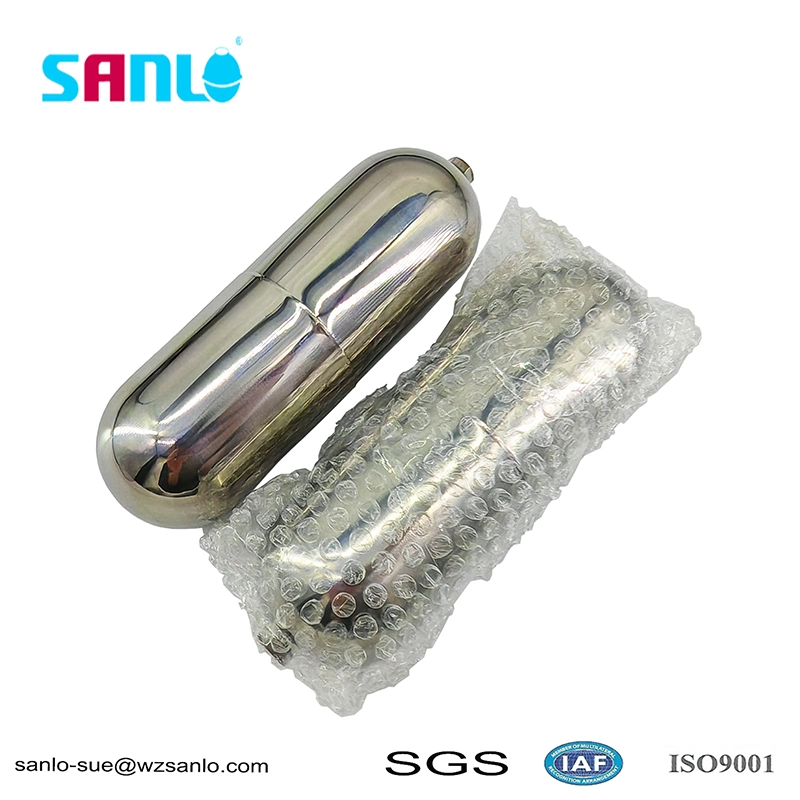

SUS316L Steel Float Ball 50*150 with M6

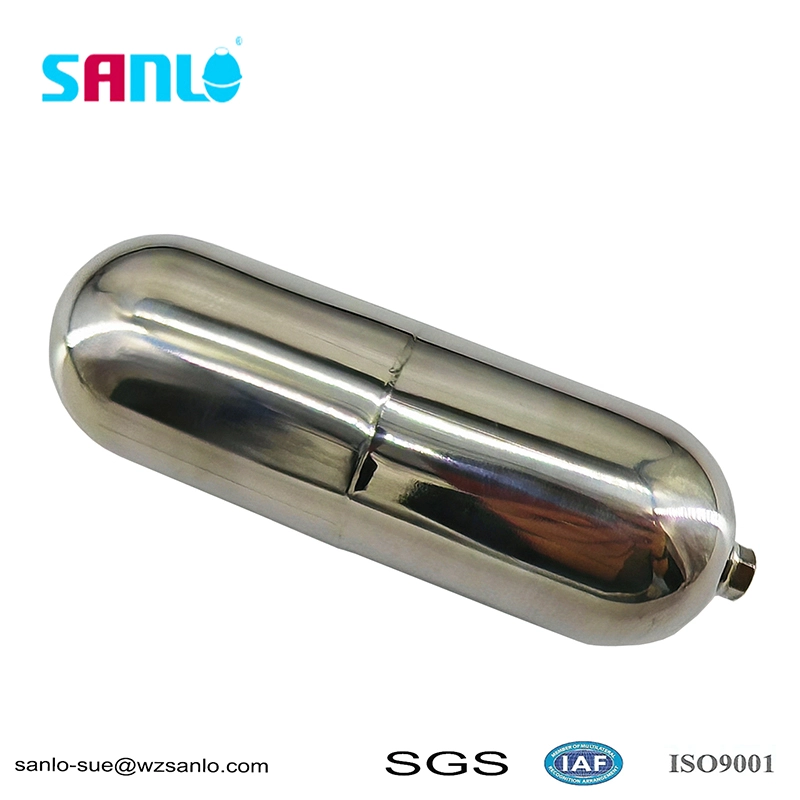

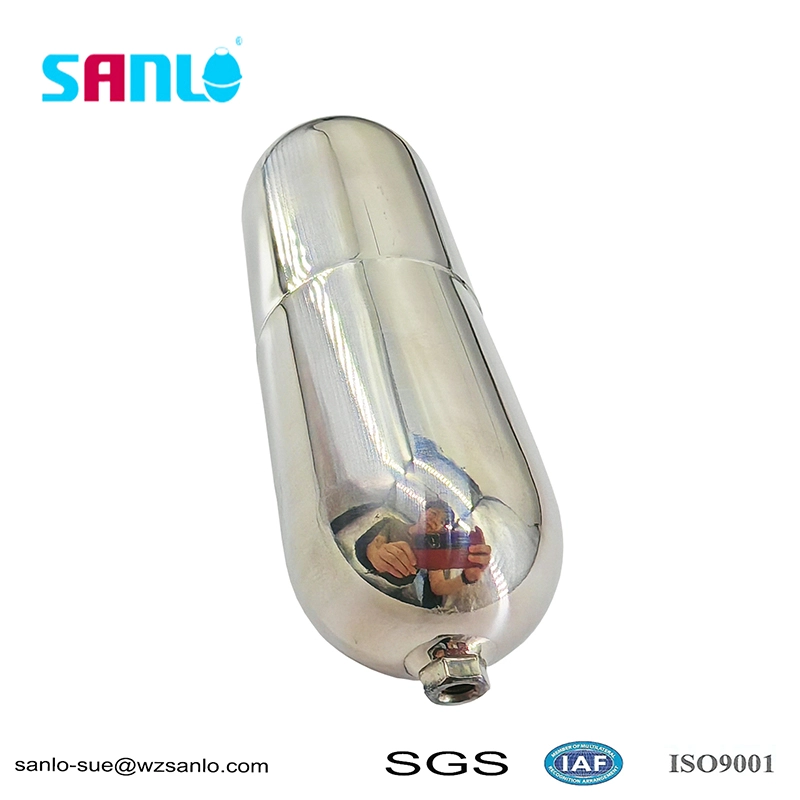

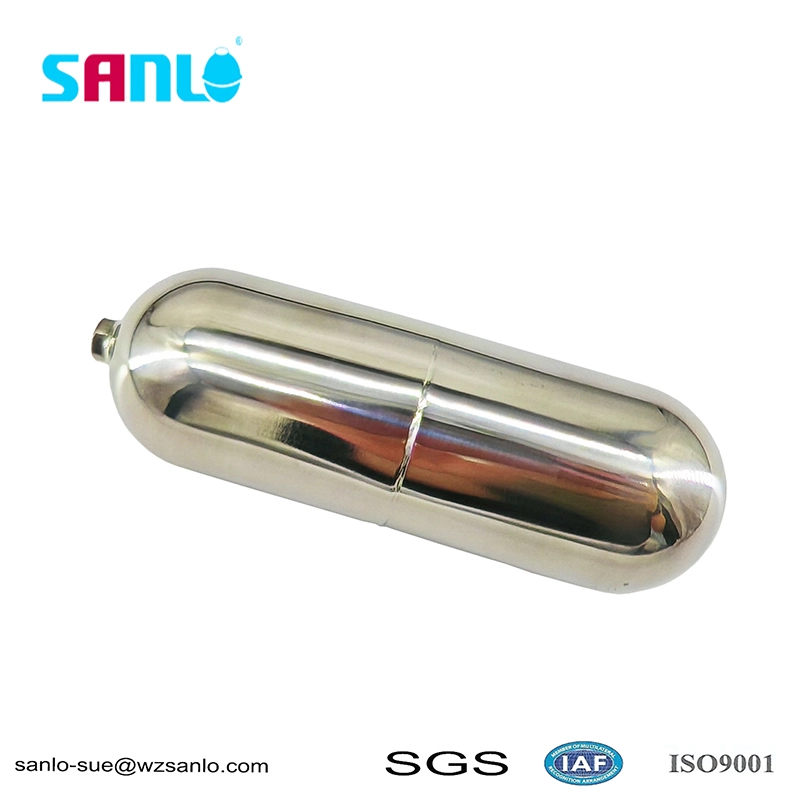

This SUS316L steel float ball 50*150 with M6 is a capsule type hollow sealed structure with two end circular arc heads. The middle section of the cylinder is precisely butt welded and fully formed, and the outer wall is polished with a high gloss finish. The surface is smooth and rounded, and it is not easy to adhere to medium impurities or crystal dirt. The lifting and running resistance is low. Standard M6 internal threaded holes are reserved at the end, which can be easily assembled with connecting rods and brackets into float valves, small level switches, and side mounted level transmitters. The installation and disassembly are flexible and adaptable to various assembly structures. The overall hollow sealed cavity structure has no liquid infiltration channel inside, and the structure is compact and small, suitable for small and medium-sized cylinders and narrow installation spaces.

Core performance advantages

1. Strong corrosion resistance of 316L stainless steel

Made of low-carbon molybdenum 316L stainless steel raw material, it has excellent resistance to chloride ions, salt spray, weak acid and alkali, industrial wastewater, and oil corrosion. It can be used in chemical, water treatment, HVAC, food and pharmaceutical media environments for a long time. The welding position is resistant to intergranular corrosion, and long-term immersion is not easy to cause weld leakage, perforation and damage. Its service life is much better than that of ordinary 304 carbon steel floating balls.

2. Reliable high-pressure sealing and strong pressure bearing capacity

The overall process adopts thickened pipe wall and seamless full welding of both ends of the head. It has undergone strict high-pressure airtight pressure testing before leaving the factory, with a rated working pressure of up to 14MPa, which can meet the liquid level monitoring conditions inside high-pressure sealed tanks and pressure pipelines. It will not deform or crack under high-pressure medium impact, and has strong sealing stability.

3. Low specific gravity, high buoyancy, sensitive sensing

The overall specific gravity of the floating ball is 0.5, which is much lower than that of water and most industrial liquid media. The buoyancy reserve is sufficient, and slight fluctuations in the liquid level can drive the connecting rod and magnetic steel to move synchronously. The liquid level response is sensitive, and there will be no problems such as inability to float to the liquid level or delayed action. The individual weight is only 121g, and the lightweight design reduces the internal friction resistance of the cylinder, making it less likely to get stuck during long-term use.

4. Strong universality in assembly

Equipped with M6 standard internal thread as standard, it is a universal interface for liquid level valves and small magnetic float switches. It can directly replace imported and domestic float ball accessories of the same specifications on the market without the need for secondary processing or hole modification. Batch replacement is convenient and has good interchangeability. The mirror polished outer wall is easy to clean and suitable for clean working conditions such as sanitary water purification and beverage processing.
