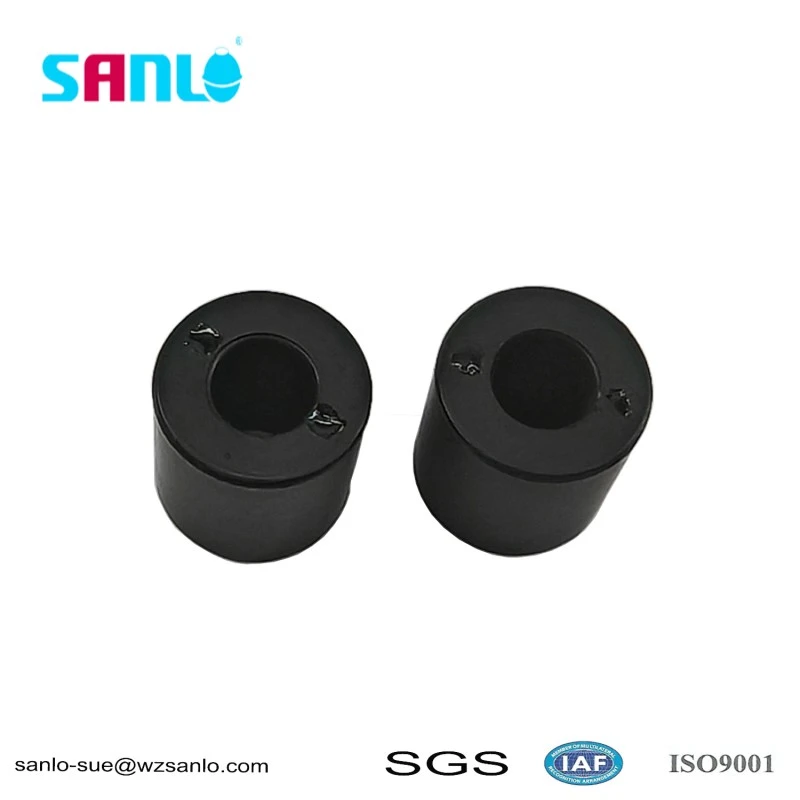

There are many classifications of rubber floating balls, such as embedded magnet floating balls, non-magnetic floating balls, and external magnets. Each NBR Float Ball 32*32*14.5 with Two Magnets must be produced according to the applicable working conditions of the customer. Embedding magnets means placing the magnets into the mold during injection molding and molding them in one go. The external magnet is drilled using a drilling machine after the float is completed, usually with 2, 3, and 4 holes. The holes are drilled according to the customer's requirements, and then the magnet is installed and sealed with glue. Welcome customers to call and inquire.
· Regular standard product model: NBR Float Ball 32 × 32 × 14.5
· Product weight: 5g
· Specific gravity: 0.65
· Working pressure: Atmospheric pressure to 1–2 MPa
· Working temperature range: 20°C to 110°C
· Suitable media: Gasoline, kerosene, water
· The NBR Float Ball 32*32*14.5 with Two Magnets is equipped with 2 magnets
· The main production difficulty is the magnet installation process
· Production steps:
1. Injection molding of the float ball
2. Drilling holes on the float ball surface with a drilling machine
3. Manually installing magnets one by one into the float ball
4. Sealing the holes with glue
· After production, all products undergo appearance inspection and selection
· Unqualified products are picked out on site and Destroyed directly
· Qualified products are then sent to customers for inspection and testing
· We guarantee 100% quality assurance
|
Size |
Material |
weight |
S.G |
Temp |
Pressure |
medium |
|
32*32*14.5 |
NBR |
5 |
0.65 |
20--+110℃ |
1-2MPA |
Gasoline, kerosene, weak alkali |
| Characteristic category | PVDF | PTFE | NBR | FKM | EPDM |
| chemical stability |
Resistant to strong acids, strong bases,and organic solvents (excluding strongly polar solvents) |
Resistant to all chemicals (except for molten alkali metals/elemental fluorine), with top-notch chemical inertness |
Resistant to mineral oil, animal and vegetable oil, not resistant to ozone, ketone solvents |
Oil resistance,strong acid and alkali resistance, organic solvent resistance, corrosion resistance close to PTFE |
Excellent ozone resistance and weather resistance,poor oil resistance,limited chemical resistance |
|
Temperature resistance range |
Continuous use:-40℃~150℃, short-term 180℃ |
Continuous use:-268℃ ~260℃,short-term 300℃ |
Continuous use:-20℃ ~120℃, short-term 150 ℃ |
Continuous use:-20℃ ~250℃,short-term 300℃ |
Continuous use:-40℃ ~150℃, short-term 180℃ |
| mechanical properties |
Tensile strength of 30-100MPa, good toughness,low wear resistance coefficient |
Tensile strength of 20~30MPa,extremely low friction coefficient (0.01~0.05),low rigidity |
Hardness 50~90 Shore A, good wear resistance, high tear strength |
Hardness 70~95 Shore A, maintains high strength at high temperatures,with minimal permanent compression deformation |
Hardness 50～90 Shore A,good elasticity, outstanding fatigue resistance |
| machinability |
Injection molding,extrusion, welding,thermoplastic processing |
Cold pressing sintering is required,injection molding is not possible,and the processing difficulty is high |
Can be vulcanized and molded,suitable for molding and extrusion |
High temperature vulcanization is required, the processing technology is complex,and the cost is high |
Can be vulcanized and molded,suitable for extrusion and molding, with poor adhesion |
| Electrical performance |
Dielectric constant of3.0~10.0, volume resistivity of 1×10 1⁴~1×1016Ω ·cm |
Dielectric constant 2.0~2.2, volume resistivity>1×1018 Ω ·cm,optimal high- frequency performance |
Medium dielectric loss, poor corona resistance |
Excellent dielectric properties,stable insulation at high temperatures |
Dielectric constant of 2.2~3.0,excellent weather resistance, high insulation resistance |
| weather resistance |
UV resistant,ozone resistant, outdoor lifespan of 3-5 years |
Extremely weather resistant, with an outdoor lifespan of 10-20 years |
Poor weather resistance and susceptibility to ozone aging |
Excellent weather resistance,ozone resistance,and radiation resistance |
Top weather resistance,ozone resistance,aging resistance,outdoor lifespan of5-10years |
It is suitable for gasoline, kerosene, water, and other compatible liquid environments requiring oil-resistant floating components.
Two magnets improve magnetic sensing stability and help maintain more accurate signal transmission in liquid level control systems.
Yes. Sanlo supports customized magnet quantity, drilling positions, and sealing methods according to customer equipment requirements.
