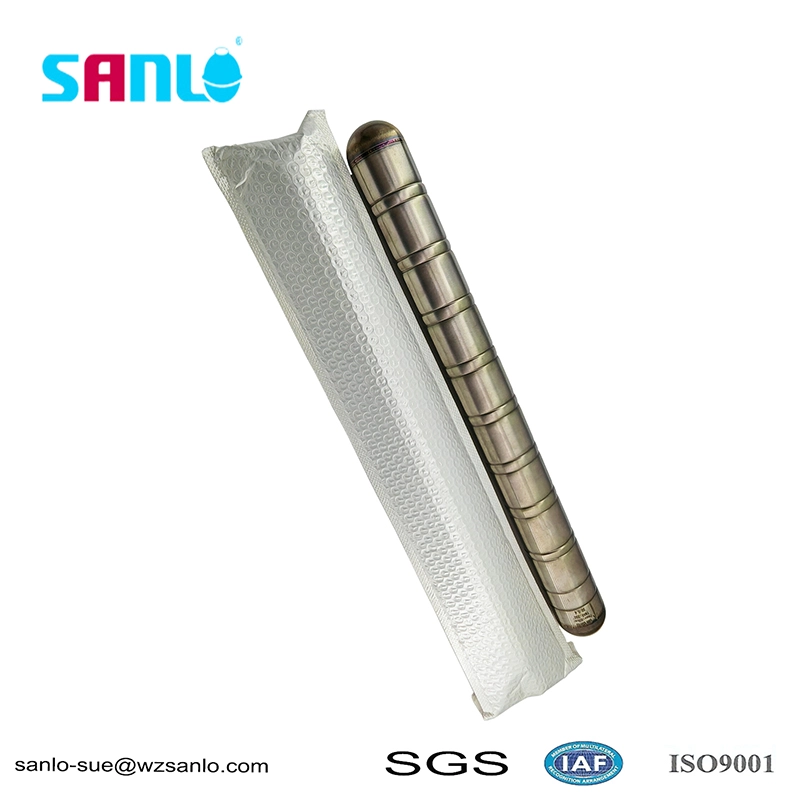

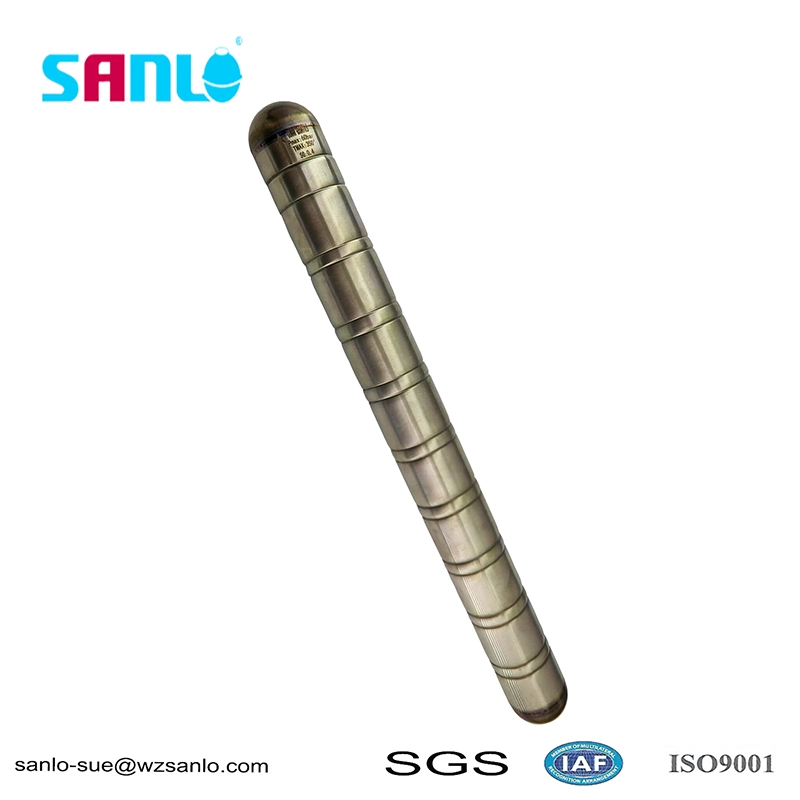

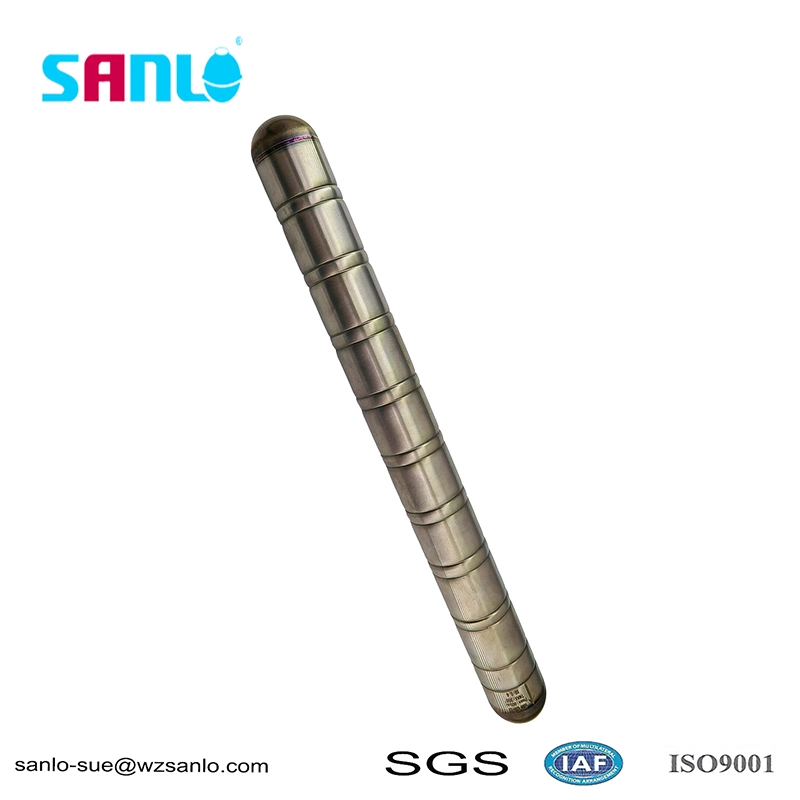

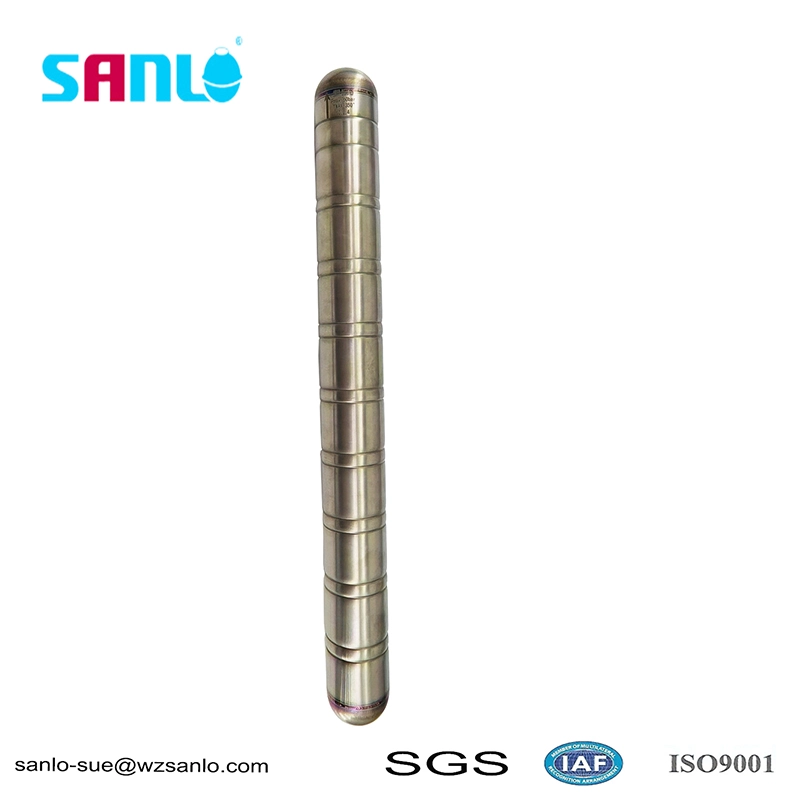

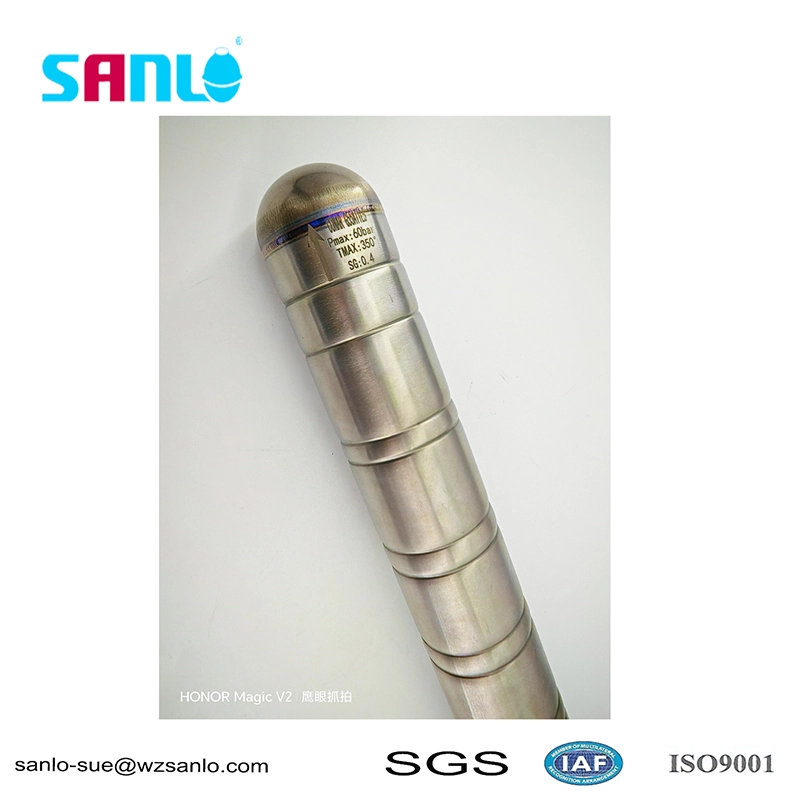

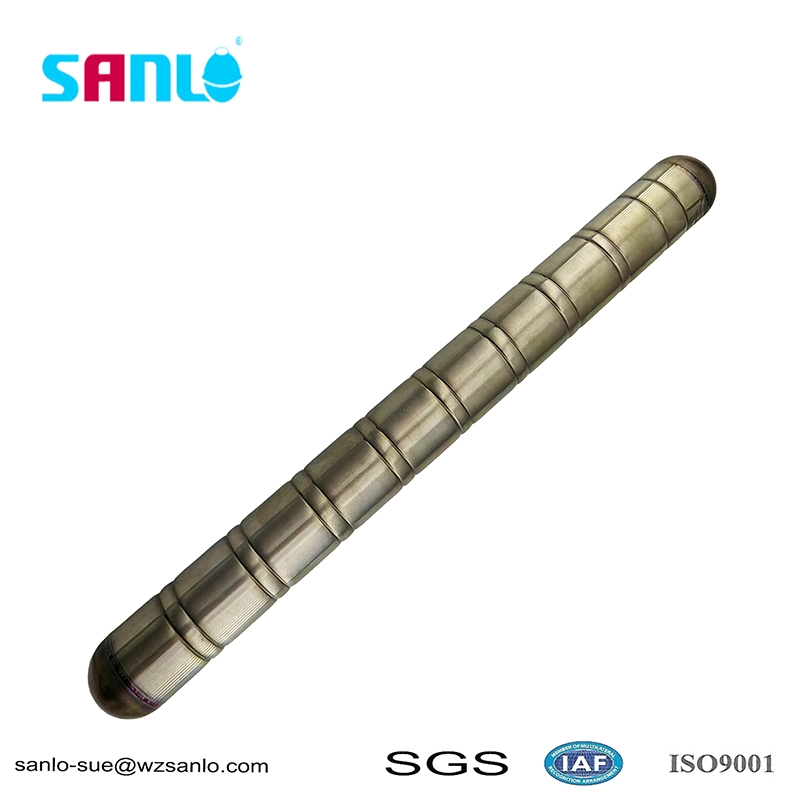

The overall slender cylindrical shape of the 50×510 Titanium Float Ball for Magnetic Flap Level Gauge, with smooth heads at both ends, effectively eliminates stress concentration and improves pressure resistance. The multiple annular grooves on the outer wall are the highlight of the core structure: on the one hand, it can increase damping effect during liquid flow, resist the impact of turbulent liquid flow in the tank, keep the large-sized floating ball in a vertical posture, avoid left and right deviation and jamming, and ensure smooth and stable liquid level rise and fall; On the other hand, the ring groove can reduce the adhesion and accumulation of viscous media and crystalline salts on the surface of the sphere, thereby reducing the probability of long-term operation failure. 510mm extended axial length provides stronger guidance inside the liquid level gauge cylinder, ensuring continuous and stable liquid level feedback and preventing numerical fluctuations. The vacuum sealed permanent magnet inside the cavity is completely isolated from external liquids, ensuring permanent and reliable air tightness.
1. Super strong corrosion resistance, suitable for extreme corrosive media
Titanium metal has extremely strong chemical inertness and can spontaneously form a dense oxide protective film on its surface. It can withstand strong corrosive environments such as seawater, high concentration brine, chloride ion media, weak acids and bases, some organic acids, and saline wastewater. Its resistance to pitting and crevice corrosion far exceeds that of 304 and 316L stainless steel. Its service life in coastal areas, salt fields, and seawater desalination devices is several times that of stainless steel floating balls, and it can also adapt to chemical conditions where some stainless steel cannot be used for a long time.
2. Lightweight density and excellent buoyancy performance
The density of titanium alloy is only about 4.51g/cm ³, much lower than that of stainless steel at 7.98g/cm ³. It has a lighter weight and sufficient buoyancy margin. It is not only suitable for conventional water and oil products, but also for low-density media such as ethanol and light organic solvents. It is not easy to have problems such as sinking to the bottom or insufficient buoyancy, and has higher sensitivity for liquid level sensing.
3. High strength and good temperature stability
Titanium material has high mechanical strength, excellent impact and compression resistance, and is suitable for high-pressure tank conditions; The physical properties are stable under high and low temperature environments, with minimal thermal expansion and contraction deformation. The head weld is not easily cracked, and there is no risk of water ingress or weight gain failure after long-term immersion. All products undergo triple testing including high-pressure airtight compression, long-term immersion leak detection, and magnetic strength verification, ensuring high quality consistency.
4. Magnetic coupling works stably and is explosion-proof and safe
Built in permanent magnet steel relies on magnetic coupling to penetrate the tube wall of the cylinder, driving the external magnetic flip to flip and display the liquid level. There is no power supply or mechanical friction throughout the process, making it inherently explosion-proof. It can be used for flammable and explosive chemical storage tanks, with simple operation and maintenance, and almost no maintenance costs in the later stage
