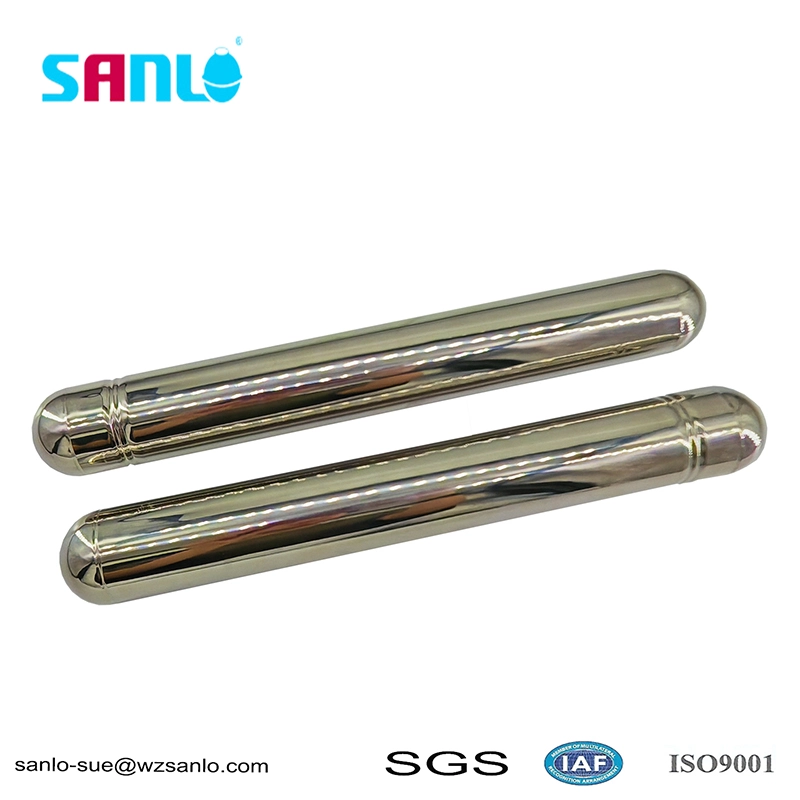

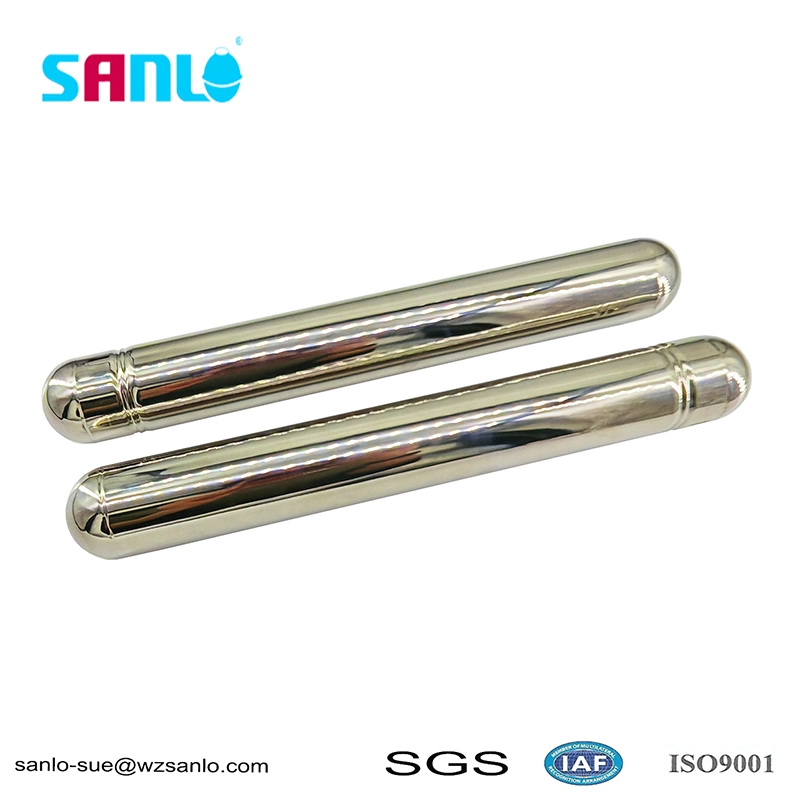

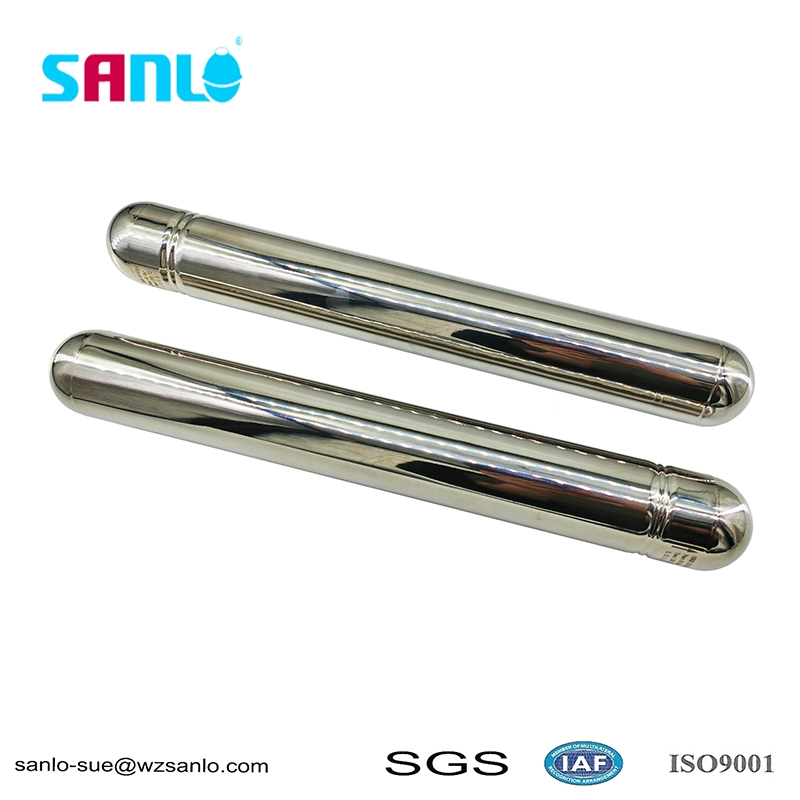

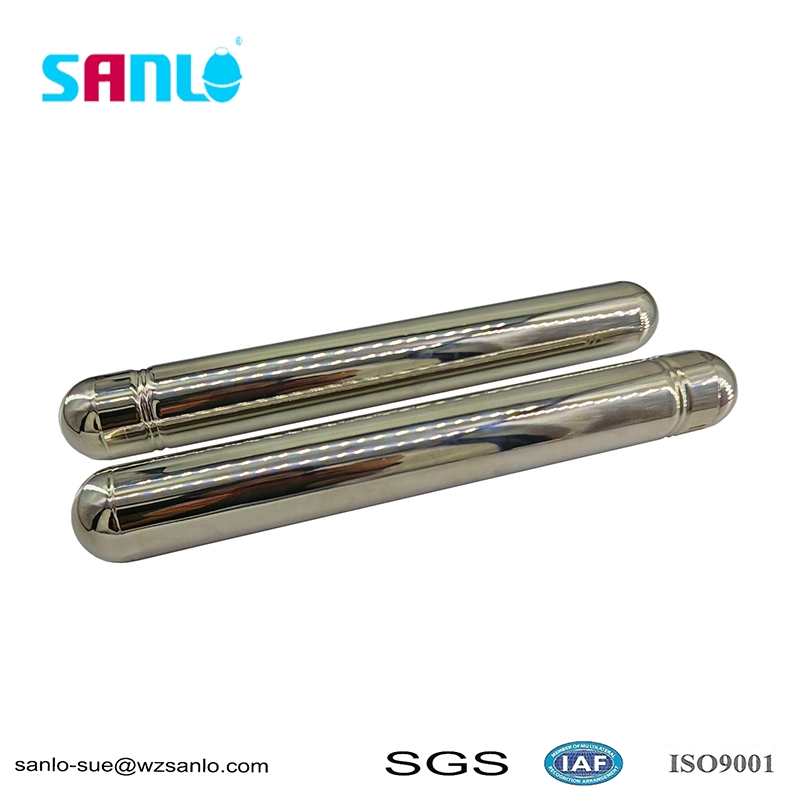

50 * 390 316L magnetic flap float ball – A mainstream industrial liquid level accessory, offering good corrosion resistance, stable operation, and high cost-effectiveness. Suitable for conventional chemical and civil storage tanks (avoid strongly corrosive or ultra light media). The shell is made of 316L seamless tube, with domed ends welded and mirror polished. Internally encapsulated with permanent magnetic steel. Compatible with most standard magnetic flap level gauge chambers. Widely used in chemical, petrochemical, water treatment, grain/oil, pharmaceutical, and power industries. Complies with ISO9001. A hot selling export model.
1.The material has outstanding corrosion resistance
316L stainless steel with added molybdenum element has much better resistance to chloride ion corrosion and acid alkali salt spray than 304 stainless steel. It can be soaked in seawater, saltwater, chlorine containing chemical wastewater, weak acid and weak alkali oil media for a long time, and is not easy to pitting or perforation. It has a longer service life in coastal working conditions, sewage treatment, and salt chemical scenarios. Low carbon components can also avoid intergranular corrosion after welding, and the sealing performance of the head weld is more stable.
2. With a length of 50 × 390, it has stable buoyancy and strong anti-interference ability
The longer axial length allows the floating ball to have a more vertical posture inside the cylinder, making it less likely to overturn or deviate during liquid turbulence and liquid level fluctuations. The lifting trajectory is regular, greatly reducing the problems of liquid level jumping and inaccurate display. The self weight and chamber volume are precisely proportioned, and the buoyancy range is adapted to conventional water-based and oil-based media, with sensitive liquid level response.
3. Reliable sealing and strong durability

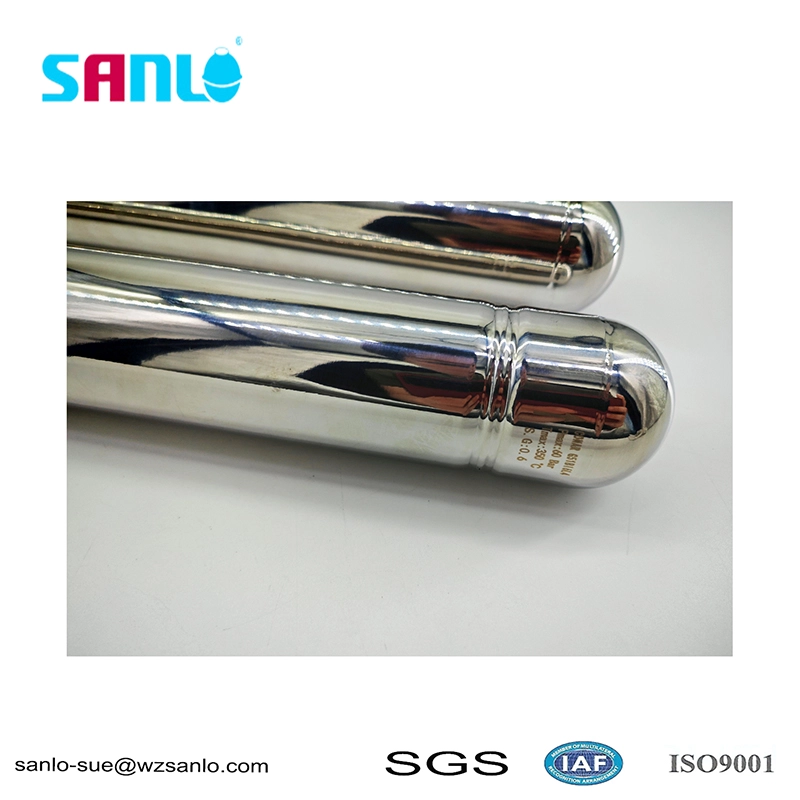

The hemispherical heads at both ends adopt full welding technology, and after welding, the overall mirror surface is polished, with a smooth appearance and no dead corners. It is not easy to adhere viscous materials or crystalline impurities, and is not prone to floating ball failure. All products undergo high-pressure airtight water immersion leak detection before leaving the factory. The internal magnetic steel is completely isolated from liquid water vapor, preventing water ingress and weight gain failure. The built-in permanent magnet has long-lasting magnetic force, no mechanical friction loss, explosion-proof safety, and can be used for flammable and explosive storage tanks.
4. Good universality and interchangeability
The outer diameter of 50mm is the mainstream standard caliber in the industry, and the length of 390mm is suitable for multiple universal magnetic flap level gauges. It can directly replace the original float without modifying the cylinder structure; Strict control of dimensional tolerances, high consistency in mass production, and stable bulk supply for foreign trade exports.
Recommended choices: tap water, industrial circulating water, sewage, seawater, diesel, lubricating oil, weak acid-base chemical fluids, neutral medium storage tanks for food and pharmaceuticals.
Not recommended to use: concentrated strong acid, strong fluoride medium, ultra light density special solvent, ultra-high pressure and high temperature reaction kettle
